Base class for integration over the source triangle for RWG-based BEM operators. More...

#include <base.hpp>

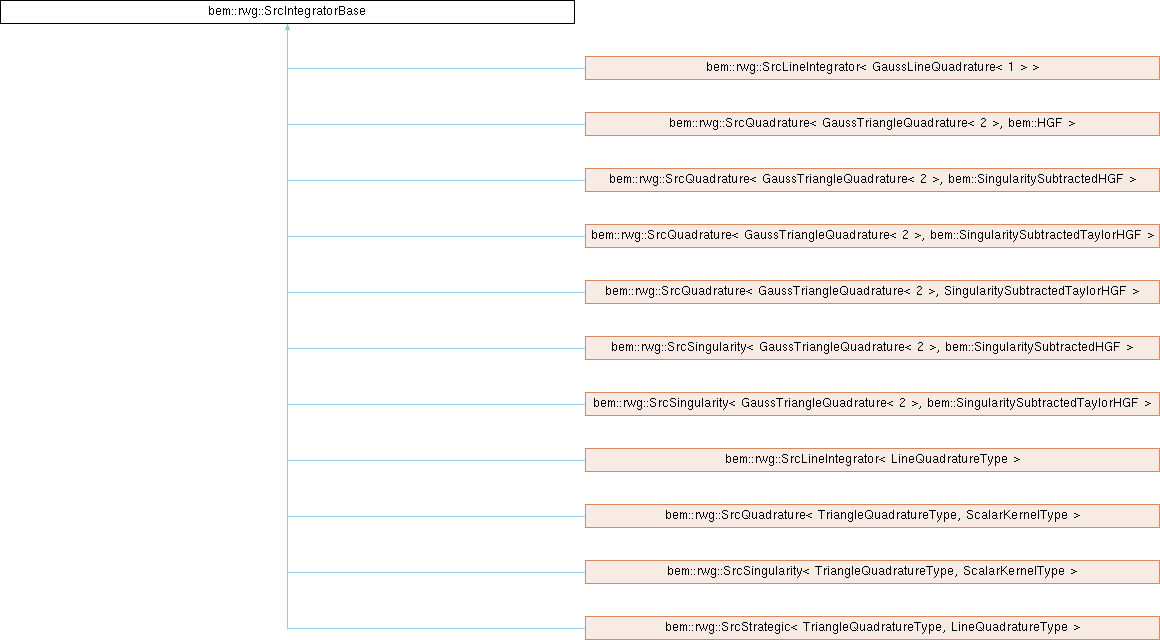

Inheritance diagram for bem::rwg::SrcIntegratorBase:

Detailed Description

Base class for integration over the source triangle for RWG-based BEM operators.

Definition at line 53 of file base.hpp.

Member Function Documentation

◆ integrate()

virtual SrcResult bem::rwg::SrcIntegratorBase::integrate	(	const Complex	k,
		const Triangle< 2 > &	src_tri,
		ConstEigRef< EigMatNX< Float, 3 > >	r_obs
	)

pure virtual

Computes the integral over the source triangle.

Parameters

[in]	k	- Complex wavenumber.
[in]	src_tri	- Source triangle in 2D space.
[in]	r_obs	- Observation points in the local coordinate system of `src_tri`.

Returns: Integration result.

Implemented in bem::rwg::SrcLineIntegrator< LineQuadratureType >, bem::rwg::SrcLineIntegrator< GaussLineQuadrature< 1 > >, bem::rwg::SrcQuadrature< TriangleQuadratureType, ScalarKernelType >, bem::rwg::SrcQuadrature< GaussTriangleQuadrature< 2 >, bem::HGF >, bem::rwg::SrcQuadrature< GaussTriangleQuadrature< 2 >, bem::SingularitySubtractedHGF >, bem::rwg::SrcQuadrature< GaussTriangleQuadrature< 2 >, bem::SingularitySubtractedTaylorHGF >, bem::rwg::SrcQuadrature< GaussTriangleQuadrature< 2 >, SingularitySubtractedTaylorHGF >, bem::rwg::SrcSingularity< TriangleQuadratureType, ScalarKernelType >, bem::rwg::SrcSingularity< GaussTriangleQuadrature< 2 >, bem::SingularitySubtractedHGF >, bem::rwg::SrcSingularity< GaussTriangleQuadrature< 2 >, bem::SingularitySubtractedTaylorHGF >, and bem::rwg::SrcStrategic< TriangleQuadratureType, LineQuadratureType >.

◆ set_compute_terms()

virtual void bem::rwg::SrcIntegratorBase::set_compute_terms	(	bool	compute_g_terms,
		bool	compute_grad_g_terms
	)

inlinevirtual

Sets flags defining which terms to compute during integration.

Parameters

[in]

compute_g_terms

- If true, computes

\[ \int_{\mathrm{src\_tri}} d\mathcal{S}'\,G(k, \vec{r}, \vec{r}\,') \]

and

\[ \int_{\mathrm{src\_tri}} d\mathcal{S}'\,\vec{r}\,'\,G(k, \vec{r}, \vec{r}\,') \]

for the scalar kernel \( G(k, \vec{r}, \vec{r}\,') \).

[in]

compute_grad_g_terms

- If true, computes

\[ \int_{\mathrm{src\_tri}} d\mathcal{S}'\,\nabla G(k, \vec{r}, \vec{r}\,'), \]

\[ \int_{\mathrm{src\_tri}} d\mathcal{S}'\,x'\,\nabla G(k, \vec{r}, \vec{r}\,'), \]

and

\[ \int_{\mathrm{src\_tri}} d\mathcal{S}'\,y'\,\nabla G(k, \vec{r}, \vec{r}\,'), \]

for the scalar kernel \( G(k, \vec{r}, \vec{r}\,') \), and for local source triangle coordinates \(\vec{r}\,' = [x', y']^T\).

Definition at line 96 of file base.hpp.

◆ zeros()

virtual SrcResult bem::rwg::SrcIntegratorBase::zeros	(	const Complex	k,
		const Triangle< 2 > &	src_tri,
		ConstEigRef< EigMatNX< Float, 3 > >	r_obs
	)

inlinevirtual

Returns a result of zeros of the appropriate size.

Parameters

[in]	k	- Complex wavenumber.
[in]	src_tri	- Source triangle in 2D space.
[in]	r_obs	- Observation points in the local coordinate system of `src_tri`.

Returns: Integration result.

Definition at line 114 of file base.hpp.

Member Data Documentation

◆ compute_g_terms_

bool bem::rwg::SrcIntegratorBase::compute_g_terms_ = true

protected

Definition at line 123 of file base.hpp.

◆ compute_grad_g_terms_

bool bem::rwg::SrcIntegratorBase::compute_grad_g_terms_ = true

protected

Definition at line 124 of file base.hpp.

The documentation for this class was generated from the following file:

source/rwg/integrators/src/base.hpp
