Eigen-based dense matrix wrapper. More...

#include <eigen_dense.hpp>

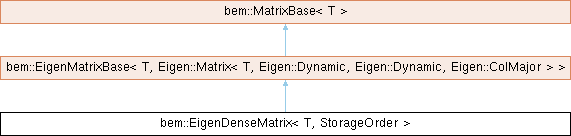

Inheritance diagram for bem::EigenDenseMatrix< T, StorageOrder >:

Detailed Description

template<typename T, int StorageOrder = Eigen::ColMajor>
class bem::EigenDenseMatrix< T, StorageOrder >

Eigen-based dense matrix wrapper.

Template Parameters

T	- Data type to be stored in the matrix (e.g., float, double, std::complex).
StorageOrder	- Storage order of the matrix, either `Eigen::ColMajor` or `Eigen::RowMajor`.

Examples: /examples/ex01_start_here.cpp, and /examples/ex02_assemblers.cpp.

Definition at line 44 of file eigen_dense.hpp.

Member Function Documentation

◆ value()

template<typename T , int StorageOrder = Eigen::ColMajor>

T bem::EigenDenseMatrix< T, StorageOrder >::value	(	Index	row,
		Index	col
	)		const

inlineoverridevirtual

Returns the matrix value at the specified row and column.

Parameters

[in]	row	- Row index.
[in]	col	- Column index.

Returns: Value at the specified position in the matrix.

Implements bem::MatrixBase< T >.

Definition at line 61 of file eigen_dense.hpp.

◆ set_value()

template<typename T , int StorageOrder = Eigen::ColMajor>

void bem::EigenDenseMatrix< T, StorageOrder >::set_value	(	Index	row,
		Index	col,
		const T &	a
	)

inlineoverridevirtual

Sets the matrix value at the specified row and column.

Parameters

[in]	row	- Row index.
[in]	col	- Column index.
[in]	a	- Value to set.

Implements bem::MatrixBase< T >.

Definition at line 73 of file eigen_dense.hpp.

◆ add_value()

template<typename T , int StorageOrder = Eigen::ColMajor>

void bem::EigenDenseMatrix< T, StorageOrder >::add_value	(	Index	row,
		Index	col,
		const T &	a
	)

inlineoverridevirtual

Adds to the matrix value at the specified row and column.

Parameters

[in]	row	- Row index.
[in]	col	- Column index.
[in]	a	- Value to add.

Reimplemented from bem::MatrixBase< T >.

Definition at line 86 of file eigen_dense.hpp.

◆ scale()

template<typename T , int StorageOrder = Eigen::ColMajor>

void bem::EigenDenseMatrix< T, StorageOrder >::scale ( const T & a )

inlineoverridevirtual

Scales all matrix entries by a given value.

Parameters

[in] a - Value by which to scale.

Implements bem::MatrixBase< T >.

Definition at line 97 of file eigen_dense.hpp.

◆ set_constant()

template<typename T , int StorageOrder = Eigen::ColMajor>

void bem::EigenDenseMatrix< T, StorageOrder >::set_constant ( const T & a )

inline

Sets all matrix entries to a given constant value.

Parameters

[in] a - Constant value to set.

Definition at line 108 of file eigen_dense.hpp.

◆ mat_solve()

template<typename T , int StorageOrder = Eigen::ColMajor>

void bem::EigenDenseMatrix< T, StorageOrder >::mat_solve	(	MatrixBase< T > &	x,
		const MatrixBase< T > &	b
	)

inlineoverridevirtual

Solves \( \mathbf{M}\mathbf{X} = \mathbf{B} \) for matrix \( \mathbf{X} \) with a direct solver, where \( \mathbf{M} \) is this matrix, and \( \mathbf{B} \) is a given right-hand side matrix.

Parameters

[out]	x	- Solution.
[in]	b	- Right-hand side matrix, must have the same number of rows as this matrix.

Implements bem::MatrixBase< T >.

Definition at line 122 of file eigen_dense.hpp.

◆ set_block()

template<typename T , int StorageOrder = Eigen::ColMajor>

void bem::EigenDenseMatrix< T, StorageOrder >::set_block	(	const MatrixBase< T > &	x,
		Index	row_start,
		Index	col_start,
		const T &	a = `T(1)`
	)

inlineoverridevirtual

Sets a block of values in this matrix to the values of a given matrix, starting at a given position.

Parameters

[in]	x	- Matrix to insert.
[in]	row_start	- Starting row index for the block.
[in]	col_start	- Starting column index for the block.
[in]	a	- Scalar to multiply the values of `x` before inserting (optional).

Implements bem::EigenMatrixBase< T, MatrixType >.

Definition at line 142 of file eigen_dense.hpp.

◆ add_block()

template<typename T , int StorageOrder = Eigen::ColMajor>

void bem::EigenDenseMatrix< T, StorageOrder >::add_block	(	const MatrixBase< T > &	x,
		Index	row_start,
		Index	col_start,
		const T &	a = `T(1)`
	)

inlineoverridevirtual

Adds a block of values to this matrix from the values of a given matrix, starting at a given position.

Parameters

[in]	x	- Matrix whose values should be added to a block of this matrix.
[in]	row_start	- Starting row index for the block.
[in]	col_start	- Starting column index for the block.
[in]	a	- Scalar to multiply the values of `x` before adding (optional).

Implements bem::EigenMatrixBase< T, MatrixType >.

Definition at line 163 of file eigen_dense.hpp.

◆ get_block()

template<typename T , int StorageOrder = Eigen::ColMajor>

void bem::EigenDenseMatrix< T, StorageOrder >::get_block	(	MatrixBase< T > &	x,
		Index	row_start,
		Index	col_start,
		Index	b_rows,
		Index	b_cols
	)		const

inlineoverridevirtual

Retrieves a block of values from this matrix.

Parameters

[out]	x	- Matrix to store the retrieved block of values.
[in]	row_start	- Starting row index for the block.
[in]	col_start	- Starting column index for the block.
[in]	b_rows	- Number of rows in the block to retrieve.
[in]	b_cols	- Number of columns in the block to retrieve.

Implements bem::EigenMatrixBase< T, MatrixType >.

Definition at line 184 of file eigen_dense.hpp.

◆ data() [1/2]

template<typename T , int StorageOrder = Eigen::ColMajor>

virtual const T * bem::EigenDenseMatrix< T, StorageOrder >::data ( ) const

inlineoverridevirtual

Returns a read-only pointer to the underlying raw data.

Returns: Read-only pointer to the raw data.

Implements bem::MatrixBase< T >.

Definition at line 203 of file eigen_dense.hpp.

◆ data() [2/2]

template<typename T , int StorageOrder = Eigen::ColMajor>

virtual T * bem::EigenDenseMatrix< T, StorageOrder >::data ( )

inlineoverridevirtual

Returns a writable pointer to the underlying raw data - use with care.

Returns: Writable pointer to the raw data.

Implements bem::MatrixBase< T >.

Definition at line 211 of file eigen_dense.hpp.

◆ frobenius_norm()

template<typename T , int StorageOrder = Eigen::ColMajor>

T bem::EigenDenseMatrix< T, StorageOrder >::frobenius_norm ( ) const

inline

Returns the Frobenius norm of the matrix, defined as the square root of the sum of the squares of all matrix values.

Returns: Frobenius norm of the matrix.

Definition at line 220 of file eigen_dense.hpp.

◆ one_norm()

template<typename T , int StorageOrder = Eigen::ColMajor>

T bem::EigenDenseMatrix< T, StorageOrder >::one_norm ( ) const

inline

Returns the one-norm of the matrix, computed by taking the sum of absolute values of all rows for each column, and then taking the largest of these sums across all columns.

Returns: One-norm of the matrix.

Definition at line 231 of file eigen_dense.hpp.

◆ infinity_norm()

template<typename T , int StorageOrder = Eigen::ColMajor>

T bem::EigenDenseMatrix< T, StorageOrder >::infinity_norm ( ) const

inline

Returns the infinity-norm of the matrix, computed by taking the sum of absolute values of all columns for each row, and then taking the largest of these sums across all rows.

Returns: Infinity-norm of the matrix.

Definition at line 242 of file eigen_dense.hpp.

◆ rank()

template<typename T , int StorageOrder = Eigen::ColMajor>

Index bem::EigenDenseMatrix< T, StorageOrder >::rank ( ) const

inline

Computes the rank of the matrix.

Returns: Rank.

Definition at line 252 of file eigen_dense.hpp.

◆ raw_matrix() [1/2]

template<typename T , typename MatrixType >

MatrixType & bem::EigenMatrixBase< T, MatrixType >::raw_matrix ( )

inlineinherited

Returns a writable reference to the underlying raw matrix - use with caution.

Definition at line 120 of file eigen_base.hpp.

◆ raw_matrix() [2/2]

template<typename T , typename MatrixType >

const MatrixType & bem::EigenMatrixBase< T, MatrixType >::raw_matrix ( ) const

inlineinherited

Returns a read-only reference to the underlying raw matrix.

Definition at line 129 of file eigen_base.hpp.

◆ set_raw_matrix()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::set_raw_matrix ( const MatrixType & matrix )

inlineinherited

Sets the underlying raw matrix by copying over data from a given matrix.

Parameters

[in] matrix - The raw matrix to set.

Definition at line 139 of file eigen_base.hpp.

◆ bind_raw_matrix()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::bind_raw_matrix ( std::shared_ptr< MatrixType > matrix )

inlineinherited

Binds the underlying raw matrix to the data pointed at by a given matrix pointer.

Parameters

[in] matrix - Pointer to the raw matrix to be bound.

The purpose of this method is to allow creating an external Eigen matrix of type MatrixType, and then transferring ownership of that matrix to this object, but without copying over the underlying data, unlike set_raw_matrix().

Definition at line 154 of file eigen_base.hpp.

◆ num_rows()

template<typename T , typename MatrixType >

Index bem::EigenMatrixBase< T, MatrixType >::num_rows ( ) const

inlineoverridevirtualinherited

Returns the total number of rows in the matrix.

Returns: Number of rows.

Implements bem::MatrixBase< T >.

Definition at line 165 of file eigen_base.hpp.

◆ num_cols()

template<typename T , typename MatrixType >

Index bem::EigenMatrixBase< T, MatrixType >::num_cols ( ) const

inlineoverridevirtualinherited

Returns the total number of rows in the matrix.

Returns: Number of rows.

Implements bem::MatrixBase< T >.

Definition at line 175 of file eigen_base.hpp.

◆ size()

template<typename T , typename MatrixType >

Index bem::EigenMatrixBase< T, MatrixType >::size ( ) const

inlineoverridevirtualinherited

Returns the size (rows * cols) of the matrix.

Returns: Size (rows * cols).

Reimplemented from bem::MatrixBase< T >.

Definition at line 185 of file eigen_base.hpp.

◆ resize()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::resize	(	Index	rows,
		Index	cols
	)

inlineoverridevirtualinherited

Resizes the matrix to a new number of rows and columns.

Parameters

[in]	rows	- New number of rows.
[in]	cols	- New number of columns.

Implements bem::MatrixBase< T >.

Definition at line 196 of file eigen_base.hpp.

◆ clear()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::clear ( )

inlineoverridevirtualinherited

Clears all data in the matrix and sets its size to 0.

Implements bem::MatrixBase< T >.

Definition at line 207 of file eigen_base.hpp.

◆ set_zero()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::set_zero ( )

inlineoverridevirtualinherited

Sets all matrix entries to zero.

Implements bem::MatrixBase< T >.

Definition at line 217 of file eigen_base.hpp.

◆ set_identity()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::set_identity ( )

inlineoverridevirtualinherited

Sets the matrix to identity (ones along the diagonal).

Reimplemented from bem::MatrixBase< T >.

Definition at line 227 of file eigen_base.hpp.

◆ set_transpose()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::set_transpose ( const MatrixBase< T > & x )

inlineinherited

Computes \( \mathbf{M} = \mathbf{X}^T \) where \( \mathbf{M} \) is this matrix, \( \mathbf{X} \) is a given matrix, and \( \mathbf{X}^T \) is its transpose.

Parameters

[in] x - Matrix to transpose.

Definition at line 240 of file eigen_base.hpp.

◆ get_diagonal()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::get_diagonal ( MatrixBase< T > & x ) const

inlineinherited

Retrieves matrix values on the diagonal, zeroing out all other entries.

Parameters

[out] x - Diagonal matrix.

Definition at line 252 of file eigen_base.hpp.

◆ add_ax()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::add_ax	(	const MatrixBase< T > &	x,
		const T &	a = `T(1)`
	)

inlineoverridevirtualinherited

Computes \( \mathbf{M} = \mathbf{M} + a\mathbf{X} \) where \( \mathbf{M} \) is this matrix, \( a \) is a scalar, and \( \mathbf{X} \) is a matrix.

Parameters

[in]	x	- Matrix to scale and add, must have the same dimensions as this matrix.
[in]	a	- Scalar which which to scale `x`.

Implements bem::MatrixBase< T >.

Definition at line 266 of file eigen_base.hpp.

◆ set_axpby()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::set_axpby	(	const MatrixBase< T > &	x,
		const MatrixBase< T > &	y,
		const T &	a = `T(1)`,
		const T &	b = `T(1)`
	)

inlineinherited

Computes \( \mathbf{M} = a\mathbf{X} + b\mathbf{Y} \) where \( \mathbf{M} \) is this matrix, \( a \) and \( b \) are scalars, and \( \mathbf{X} \) and \( \mathbf{Y} \) are matrices.

Parameters

[in]	x	- First matrix to scale and add, must have the same dimensions as `y`.
[in]	y	- Second matrix to scale and add, must have the same dimensions as `x`.
[in]	a	- Scalar which which to scale `x`.
[in]	b	- Scalar which which to scale `y`.

Definition at line 282 of file eigen_base.hpp.

◆ set_mat_mul()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::set_mat_mul	(	const MatrixBase< T > &	x,
		const MatrixBase< T > &	y,
		const T &	a = `T(1)`
	)

inlineinherited

Computes \( \mathbf{M} = a\mathbf{X}\mathbf{Y} \) where \( \mathbf{M} \) is this matrix, \( a \) is a scalar, and \( \mathbf{X} \) and \( \mathbf{Y} \) are matrices.

Parameters

[in]	x	- First matrix to multiply, must have the same number of columns as `y` has rows.
[in]	y	- Second matrix to multiply , must have the same number of rows as `x` has columns.
[in]	a	- Scalar which which to scale the product of `x` and `y`.

Definition at line 298 of file eigen_base.hpp.

◆ add_mat_mul()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::add_mat_mul	(	const MatrixBase< T > &	x,
		const MatrixBase< T > &	y,
		const T &	a = `T(1)`
	)

inlineinherited

Computes \( \mathbf{M} = \mathbf{M} + a\mathbf{X}\mathbf{Y} \) where \( \mathbf{M} \) is this matrix, \( a \) is a scalar, and \( \mathbf{X} \) and \( \mathbf{Y} \) are matrices.

Parameters

[in]	x	- First matrix to multiply, must have the same number of columns as `y` has rows.
[in]	y	- Second matrix to multiply , must have the same number of rows as `x` has columns.
[in]	a	- Scalar which which to scale the product of `x` and `y`.

Definition at line 314 of file eigen_base.hpp.

◆ mat_solve_iterative()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::mat_solve_iterative	(	MatrixBase< T > &	x,
		const MatrixBase< T > &	b,
		const Float	tol = `1e-3`
	)

inlineinherited

Solves \( \mathbf{M}\mathbf{X} = \mathbf{B} \) for matrix \( \mathbf{X} \) with an iterative solver, where \( \mathbf{M} \) is this matrix, and \( \mathbf{B} \) is a given right-hand side matrix.

Parameters

[out]	x	- Solution.
[in]	b	- Right-hand side matrix, must have the same number of rows as this matrix.
[in]	tol	- Tolerance for convergence (optional).

Definition at line 332 of file eigen_base.hpp.

◆ mat_solve_gmres()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::mat_solve_gmres	(	MatrixBase< T > &	x,
		const MatrixBase< T > &	b,
		const Float	tol = `1e-3`,
		const Index	restart = `100`
	)

inlineinherited

Solves \( \mathbf{M}\mathbf{X} = \mathbf{B} \) for matrix \( \mathbf{X} \) with the GMRES iterative solver, where \( \mathbf{M} \) is this matrix, and \( \mathbf{B} \) is a given right-hand side matrix.

Parameters

[out]	x	- Solution.
[in]	b	- Right-hand side matrix, must have the same number of rows as this matrix.
[in]	tol	- Tolerance for convergence (optional).
[in]	restart	- Restart iteration at which the Krylov subspace is discarded (optional).

Definition at line 349 of file eigen_base.hpp.

◆ mat_solve_bicgstab()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::mat_solve_bicgstab	(	MatrixBase< T > &	x,
		const MatrixBase< T > &	b,
		const Float	tol = `1e-3`
	)

inlineinherited

Solves \( \mathbf{M}\mathbf{X} = \mathbf{B} \) for matrix \( \mathbf{X} \) with the BiCGSTAB iterative solver, where \( \mathbf{M} \) is this matrix, and \( \mathbf{B} \) is a given right-hand side matrix.

Parameters

[out]	x	- Solution.
[in]	b	- Right-hand side matrix, must have the same number of rows as this matrix.
[in]	tol	- Tolerance for convergence (optional).

Definition at line 390 of file eigen_base.hpp.

◆ cond()

template<typename T , typename MatrixType >

Float bem::EigenMatrixBase< T, MatrixType >::cond ( ) const

inlineinherited

Computes the condition number (ratio of largest to smallest singular value) of the matrix.

Returns: Condition number.

Definition at line 424 of file eigen_base.hpp.

◆ print()

template<typename T , typename MatrixType >

void bem::EigenMatrixBase< T, MatrixType >::print ( const std::string name = "matrix" ) const

inlineoverridevirtualinherited

Prints the matrix to the terminal in a formatted manner.

Reimplemented from bem::MatrixBase< T >.

Definition at line 440 of file eigen_base.hpp.

◆ preallocate() [1/2]

template<typename T >

virtual void bem::MatrixBase< T >::preallocate ( const std::vector< Index > & nnz )

inlinevirtualinherited

Preallocates memory for a given number of non-zero values per row.

Parameters

[in] nnz - Vector containing the number of non-zero values for each row.

Reimplemented in bem::EigenSparseMatrix< T, StorageOrder >.

Definition at line 165 of file base.hpp.

◆ preallocate() [2/2]

template<typename T >

virtual void bem::MatrixBase< T >::preallocate ( Index num_entries )

inlinevirtualinherited

Preallocates memory for a given total number of non-zero values.

Parameters

[in] num_entries - Total number of non-zero values.

Reimplemented in bem::EigenSparseMatrix< T, StorageOrder >.

Definition at line 172 of file base.hpp.

◆ assemble()

template<typename T >

virtual void bem::MatrixBase< T >::assemble ( )

inlinevirtualinherited

Assembles cached data into the matrix.

Reimplemented in bem::EigenSparseMatrix< T, StorageOrder >.

Definition at line 178 of file base.hpp.

◆ write_binary()

template<typename T >

virtual void bem::MatrixBase< T >::write_binary ( const std::string name = "matrix" ) const

inlinevirtualinherited

Writes the matrix to a binary file.

Definition at line 196 of file base.hpp.

◆ read_binary()

template<typename T >

virtual void bem::MatrixBase< T >::read_binary ( const std::string name = "matrix" )

inlinevirtualinherited

Reads the matrix from a binary file.

Definition at line 211 of file base.hpp.

The documentation for this class was generated from the following file:

source/matrix/eigen_dense.hpp
